Google Ads is an online advertising program used to promote your business, help sell products or services, raise awareness, and increase traffic to your website.


The Google Ads Integration requires FoneDynamics Call Tracking product to capture Google Ads generated web session information, so please ensure FoneDynamics Call Tracking is setup when implementing the Google Ads Integration.


Our new integration with Google Ads uses the Google Ads API to push Clicks to match against conversions, more information on this can be found here:


 - https://developers.google.com/google-ads/api/docs/start

 - https://developers.google.com/google-ads/api/docs/conversions/upload-clicks

 - https://developers.google.com/google-ads/api/docs/conversions/overview

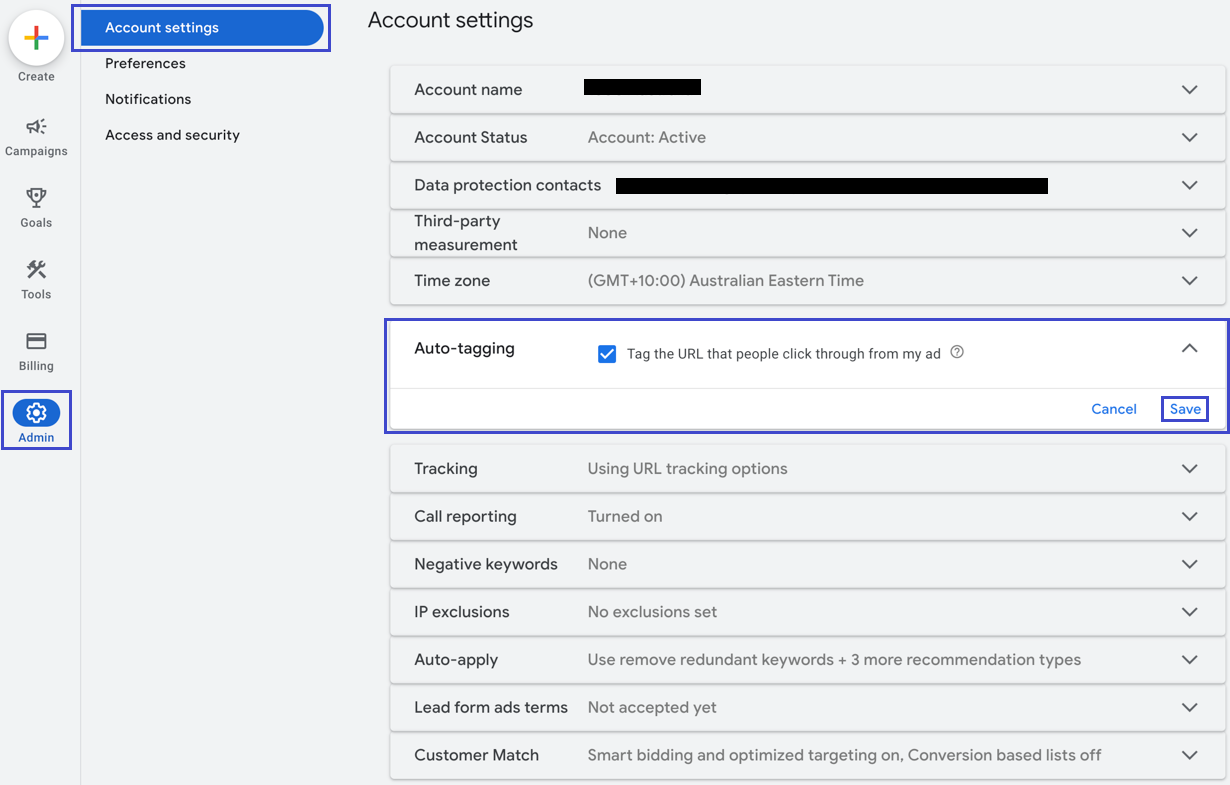

Before you start, to use click conversions you must enable auto-tagging with your Ads Account so that the Google Click ID (GCLID) can be used to push conversion back into AdWords. To see how to check if auto-tagging is enabled please click here.





The first step is done in your Google Ads account, you must create a conversion measurement, Google has a guide herebut steps are also provided below.

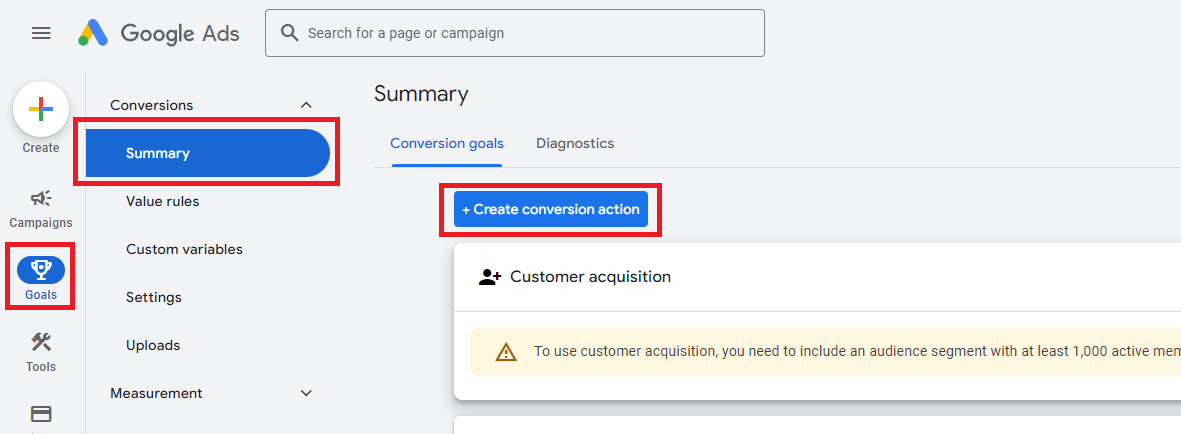

Click on 'Goals', and under Summary click 'Create conversion action'.

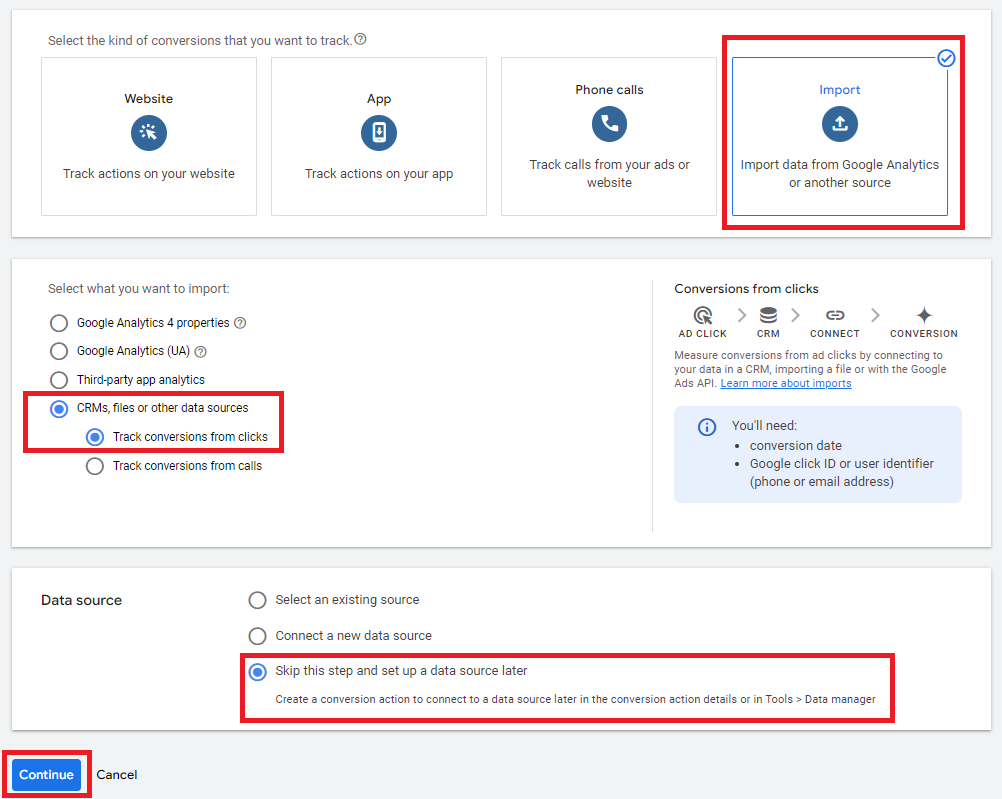

On the next section, click "Import" > "CRMs, files or other data sources" > "Track conversions from clicks" > "Skip this step and set up a data source later" > "Continue".

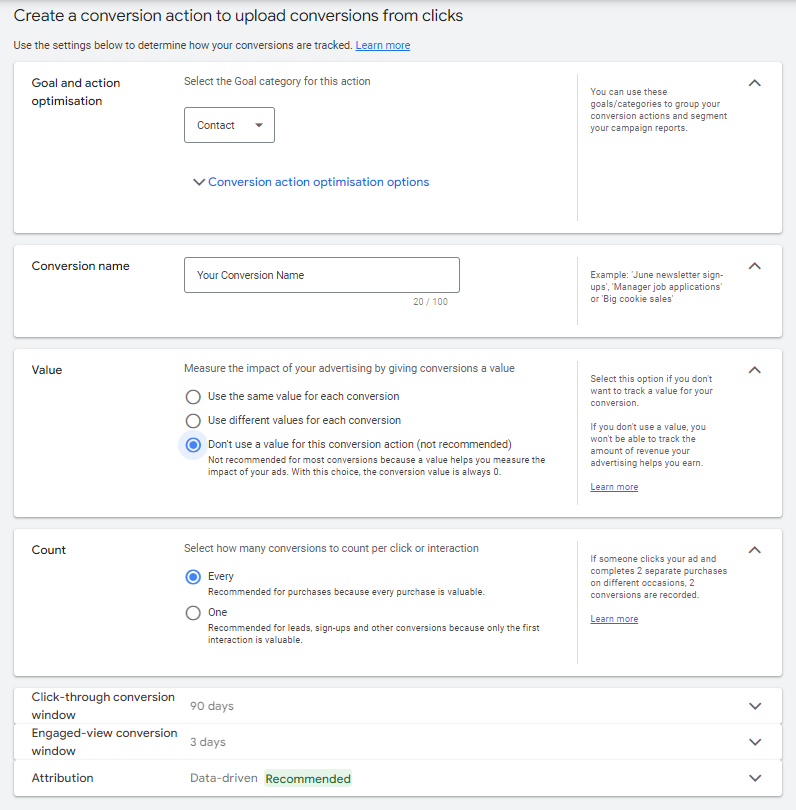

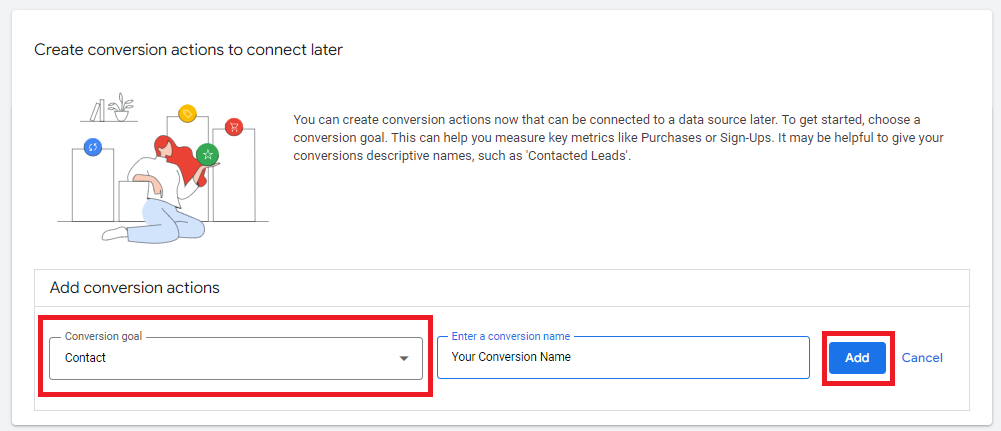

Next, select "Contact" or "Converted lead" as the conversion goal and the name of your conversion.

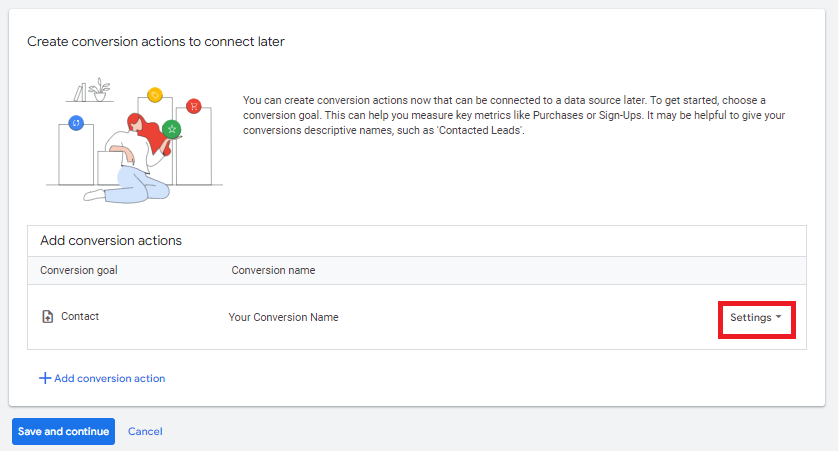

The settings on this next page are up to you but take note of the Conversion Name, this conversion name is to be input on the Reporting on Conversions in Adwords (Optional) section of the guide.





Click "Save and Continue".

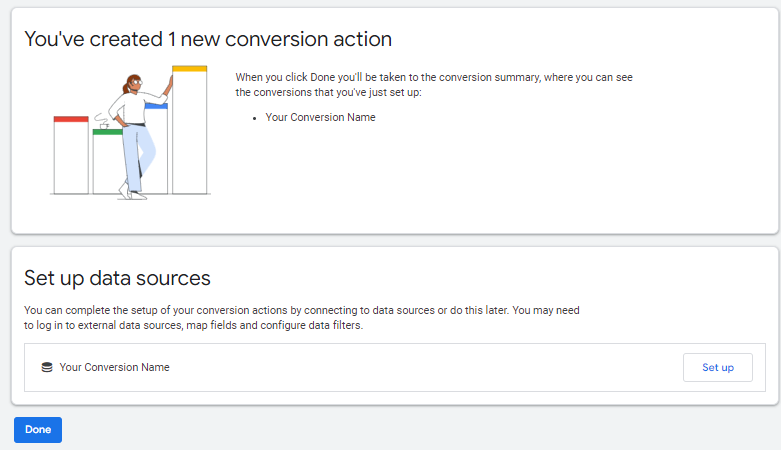

You have now created your conversion. Once you click "Done", have your Customer and Conversion Action ID at hand, you will need them while configuring the integration in our platform.

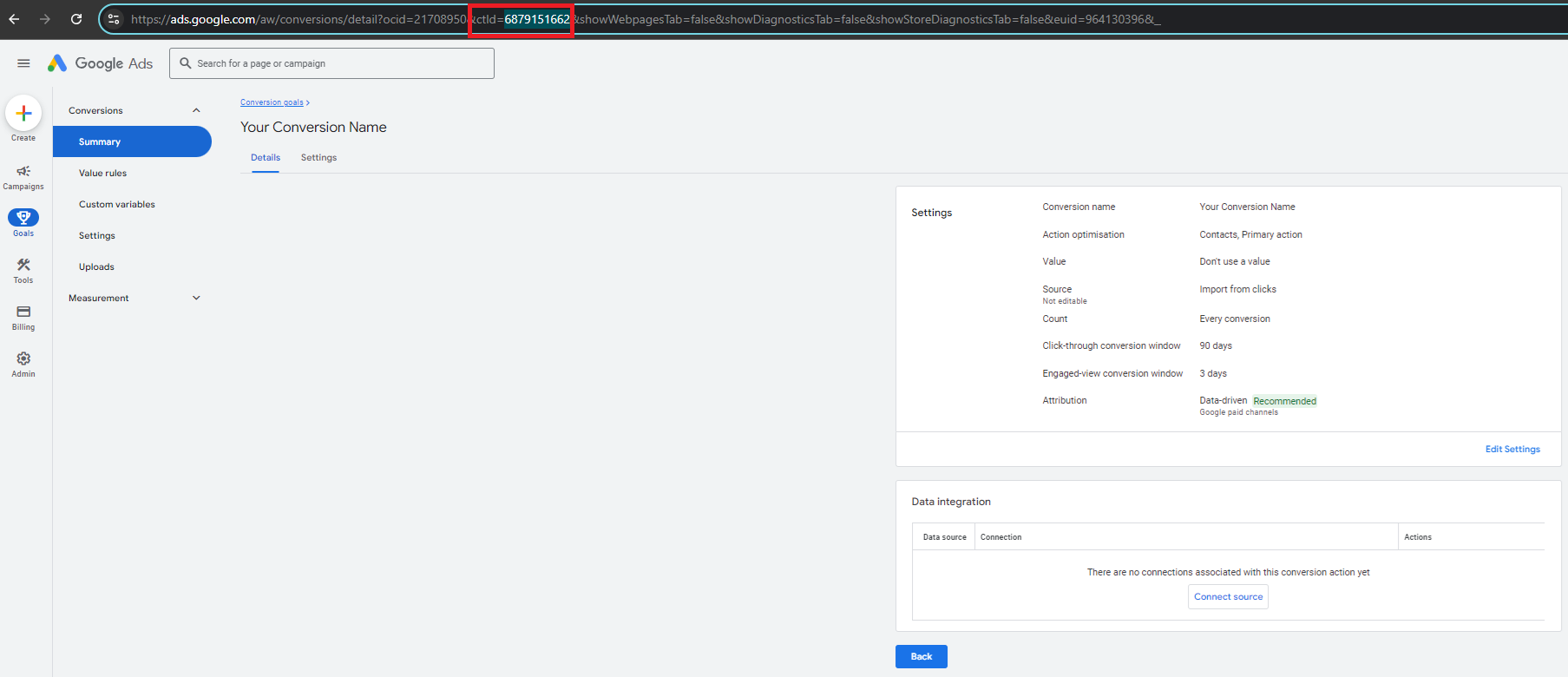

To make sure you have the correct Conversion Action ID, go inside the conversion and check the URL for the number after "ctld".

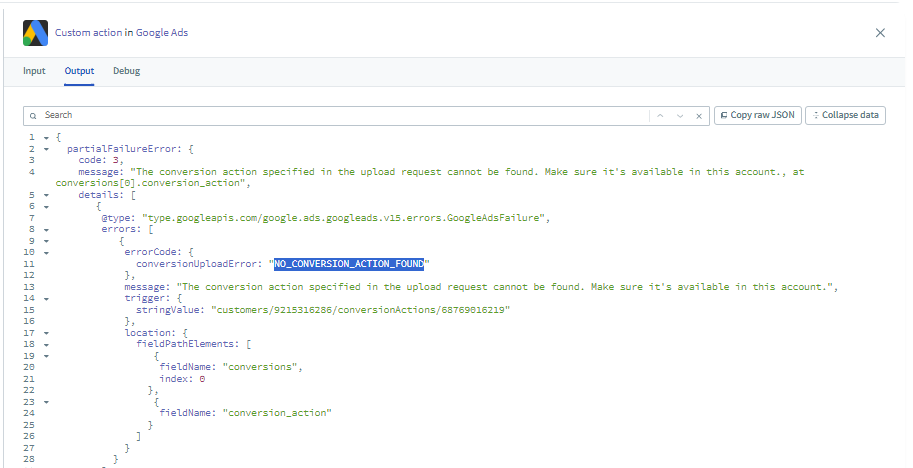

Note: Failing to add the correct Conversion Action ID will result in an error when you action the integration.

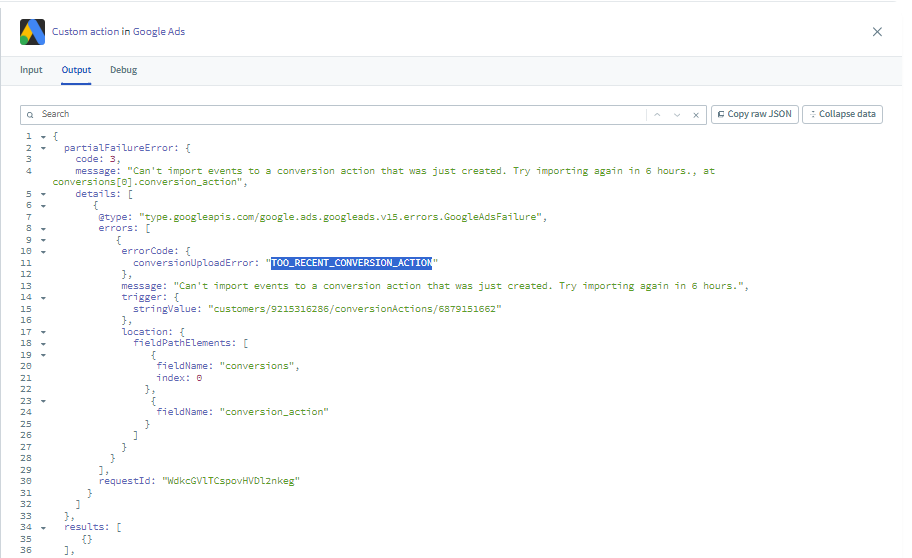

Also, with a new conversion you need to wait around 6 hours for Google Ads to process it.

Otherwise, it will give you another error.




Fone Dynamics Platform



Configuration from this step forward is now done in the Fone Dynamics Platform, through the 'Integrations' section

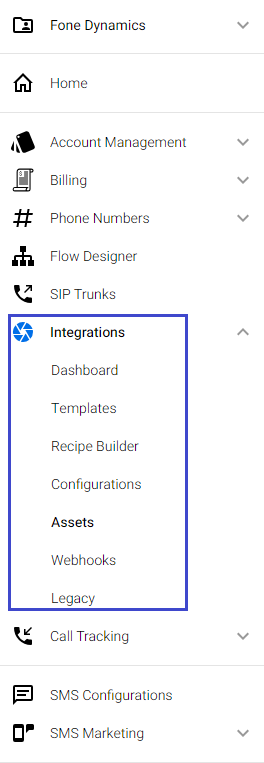

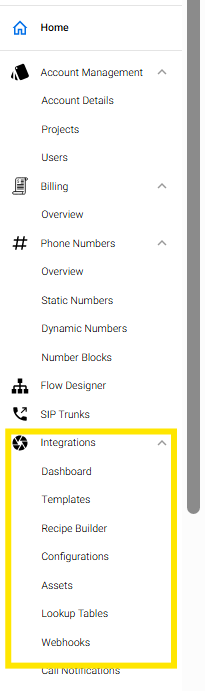

Please proceed to log in to the Fone Dynamics Platform & navigate to the Integrations section





*If you require a login to the Platform or the Integrations option is not displayed once you have logged  into the Fone Dynamics Platform, please contact the Fone Dynamics Operations Team or your Account Manager for assistance.



Integrations Setup

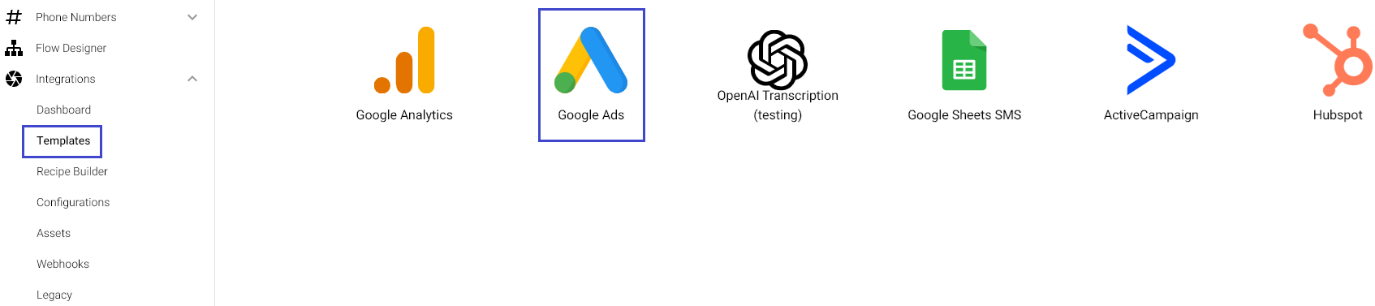

Now click on Templates from the Integrations section & then select Google Ads

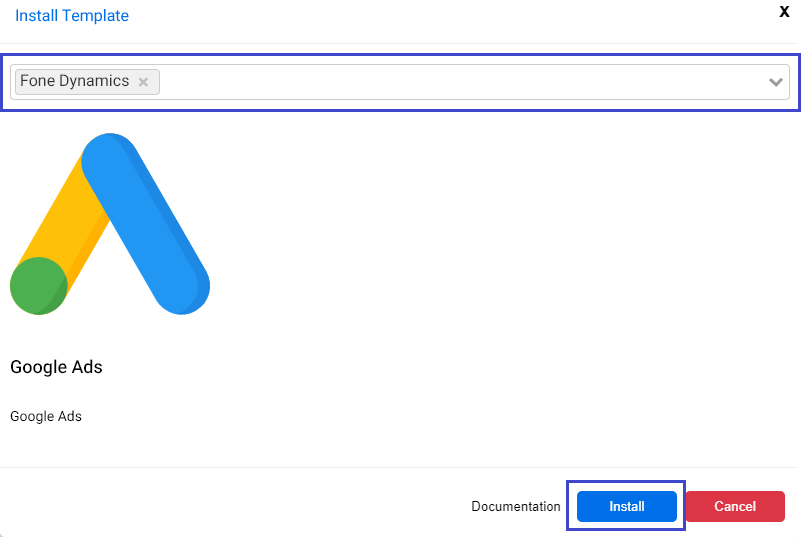

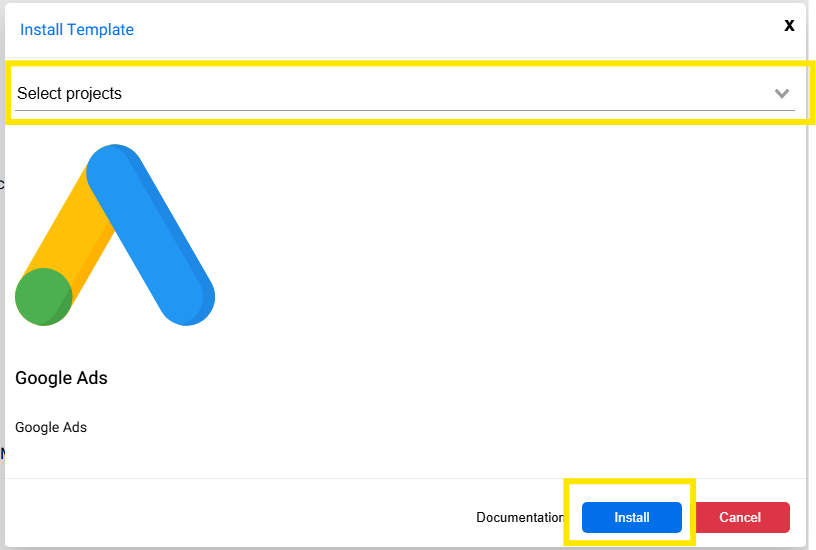

From the pop out window, specify the Project you would like the Google Ads template installed into by using the dropdown menu & then selecting Install

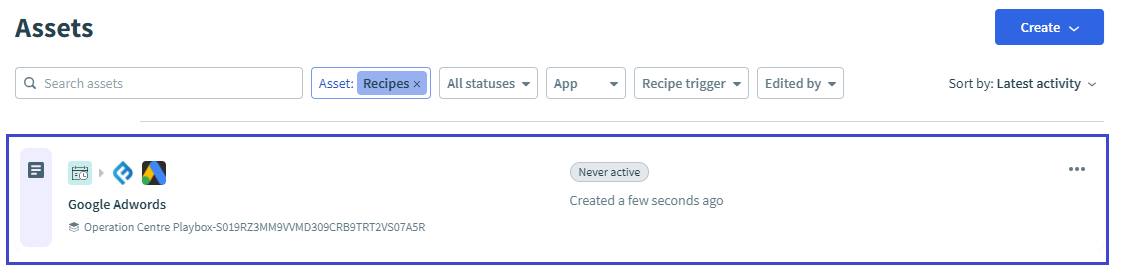

Once the template is installed, it will be visible from the Assets tab in the Integrations section


Click on Assets & then select the Google Adwords recipe to start configuration





Connection Setup:

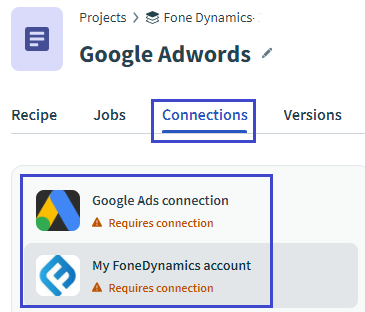

Now click on the Connections tab in the top bar to configure the FoneDynamics and Google Ads Connections for this Recipe:

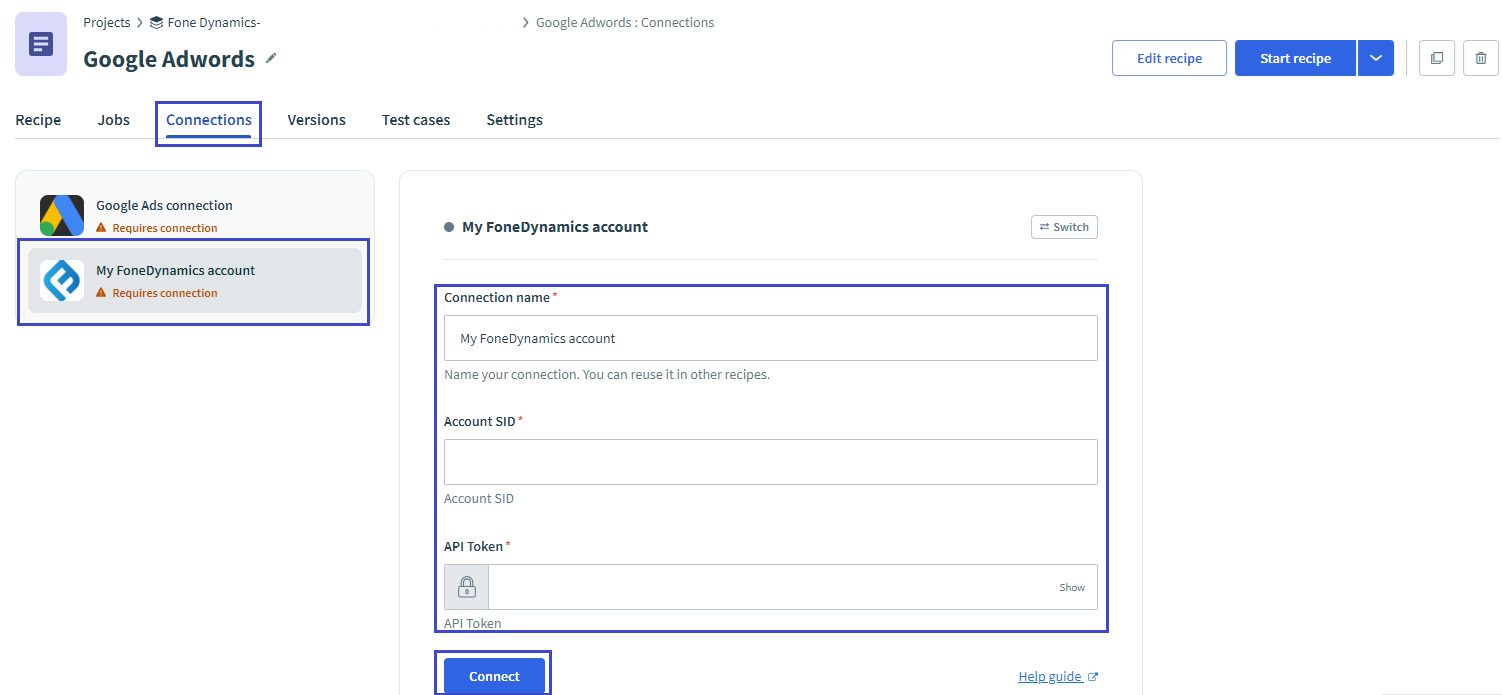

The FoneDynamics Connection will require your Account SID & API Token, a guide for locating these details can be found here


Copy the details across into their corresponding fields of the FoneDynamics Connection and then click Connect

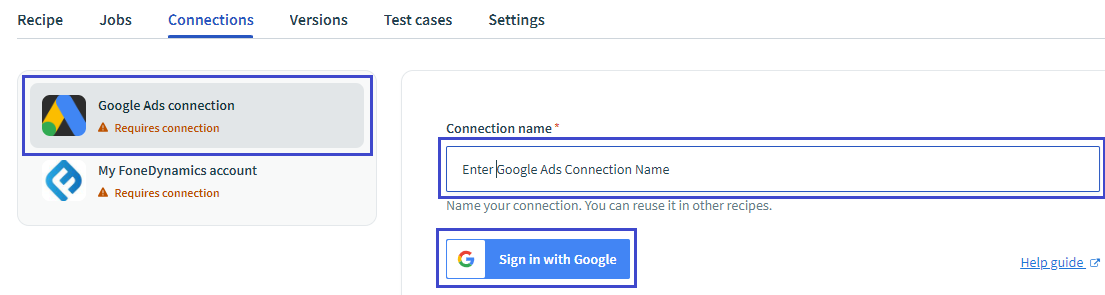

Now select the Google Ads Connection & enter a Connection Name, then click the Sign in with Google button





Sign in with your Google account details & click Next

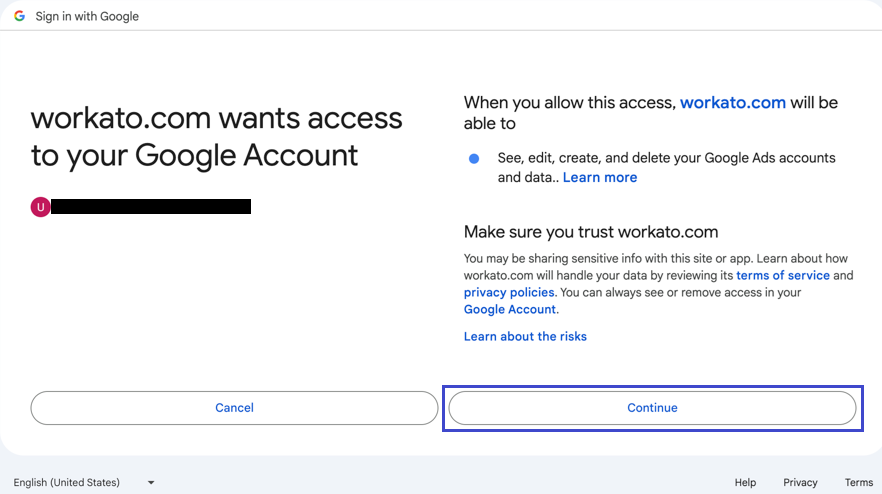

Click continue




 Review the terms of service & privacy policies & then click Continue



Now with the connections established, we’ll need to configure a few steps in the recipe


Click on Recipe from the top bar



Recipe Overview:

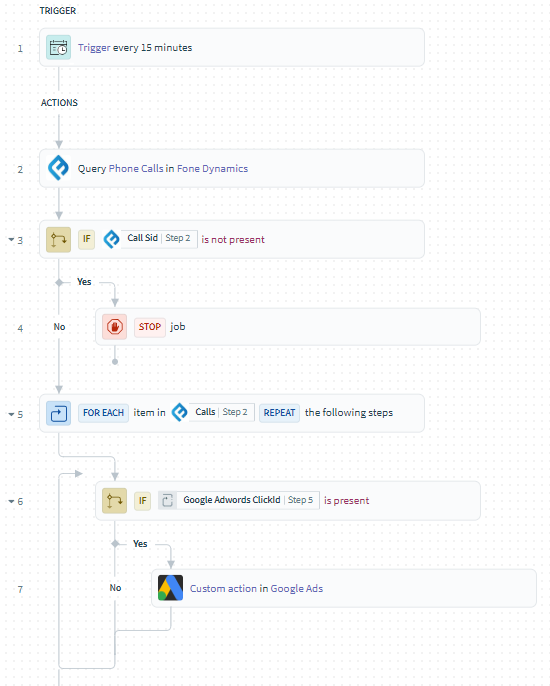

Here is an overview of the Google Ads Recipe that you will see



Breakdown of the Recipe steps:

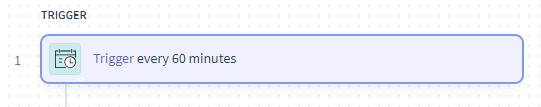

1.- Trigger


It initiates the recipe actions, follows in-sequence delivery, maintains processed job records, prevents duplicate processing, and ensures job completion in order.

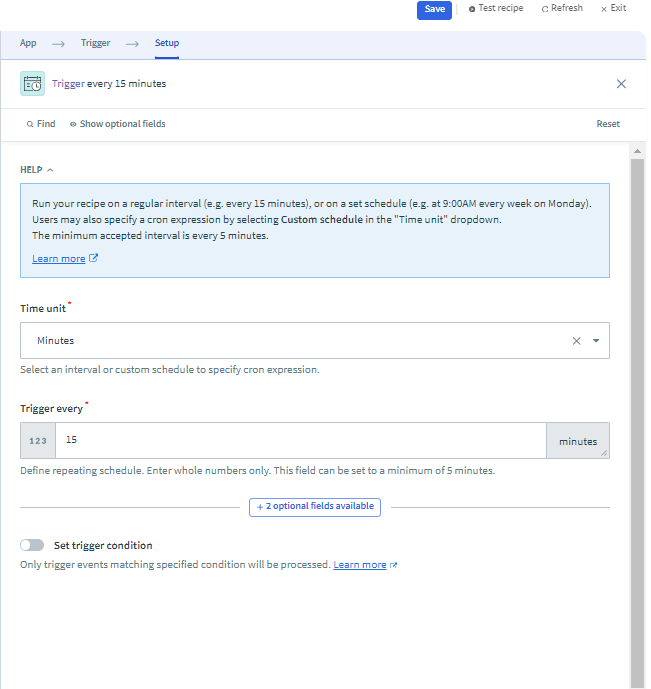

By default, the trigger is already configured, but you can tweak the options if you like



ACTIONS

Every recipe contains a set of actions, which dictates the nature and the steps the integration is going to follow.


2.- Call Query

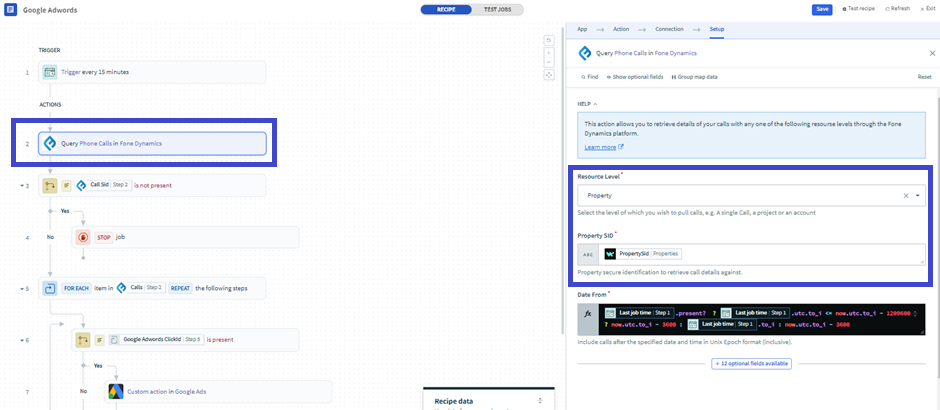

Select the step 2 node to define the Resource Level which determines the extent to which information will be pulled out from the queries.




Then use the dropdown menu from the right hand pane to select the Resource level




From the dropdown menu the choices available are Account, Property & Single Call


Property level will extract all call conversions for the specified property & is generally sufficient for most clients needs, but if you have multiple properties on a single account & wish to consolidate the data, Account may be preferential

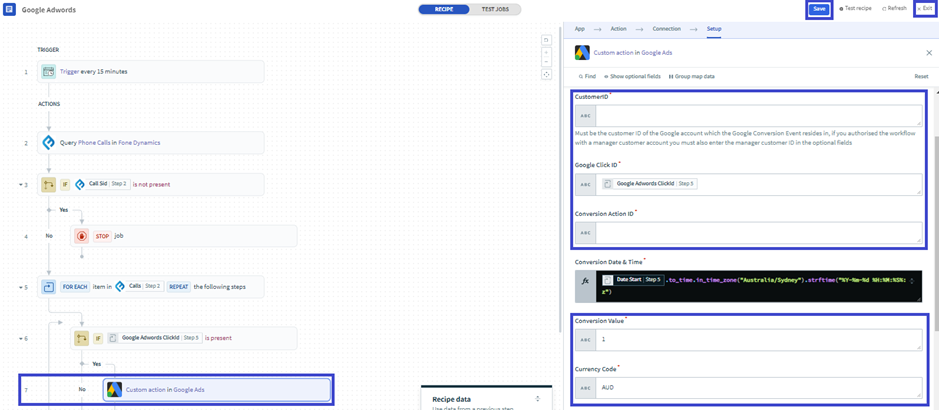

Now head down & select step 7, the Google Ads node, & from the right-hand pane you will need to enter the values for the following fields:


 - CustomerID (without space or '-' , Example: 1234567891 )

 - Conversion Action ID

 - Conversion Value

 - Currency code





Then click Save & Exit

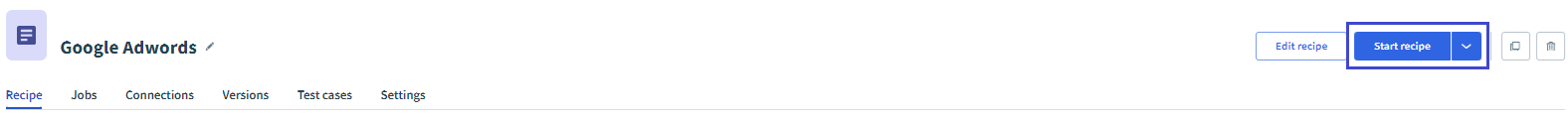

Now you can click Start Recipe






Reporting on Conversions in Adwords (Optional)


Setting up Custom Columns


Step 1

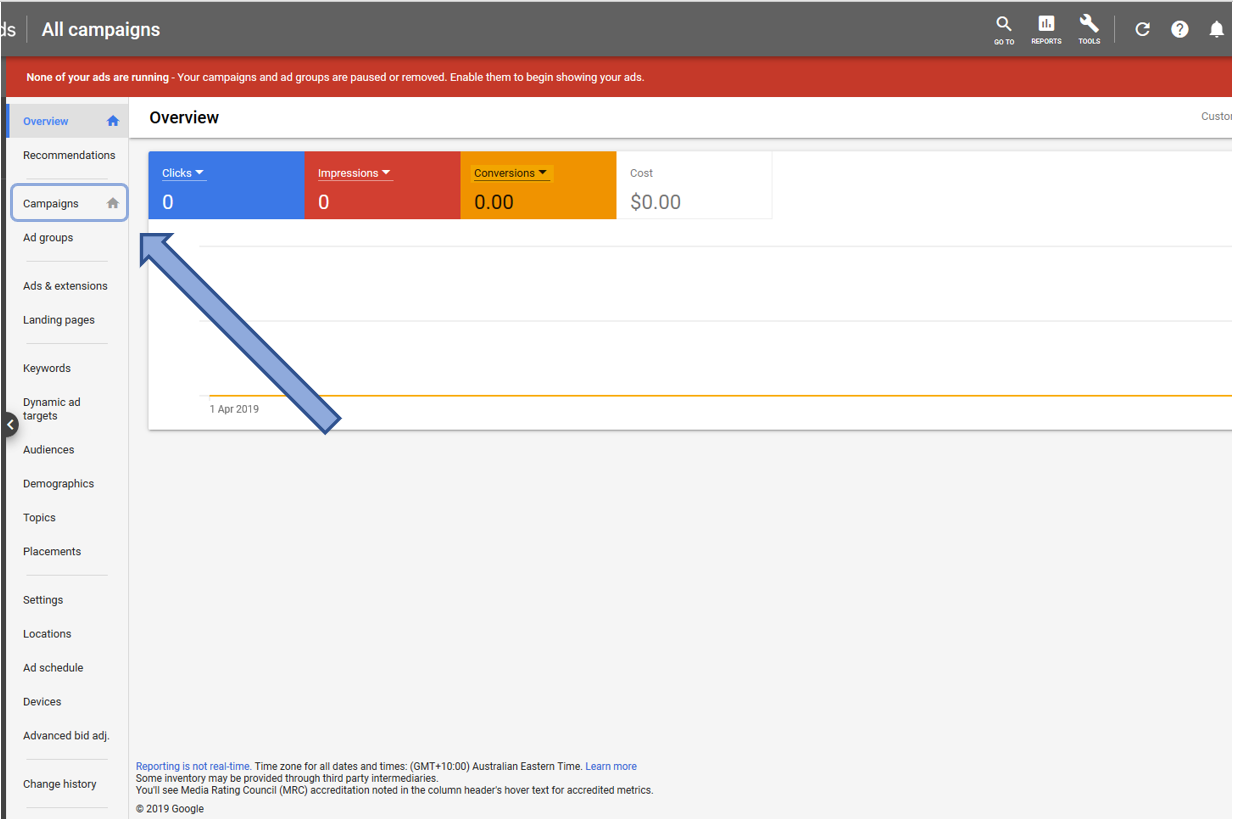

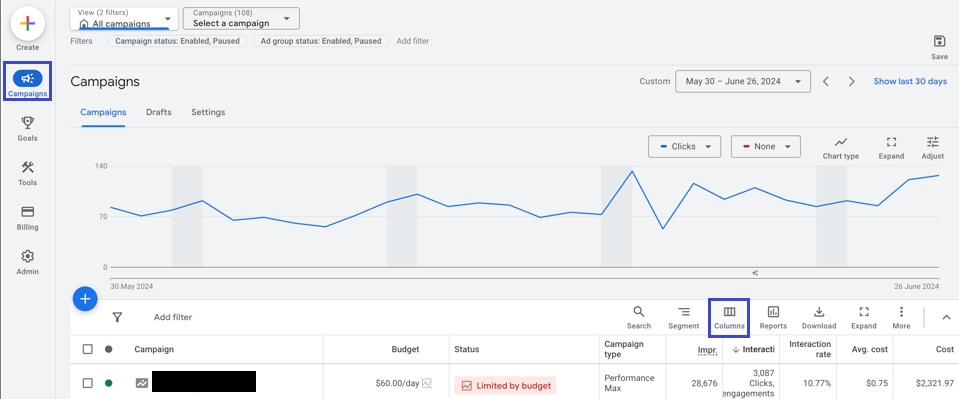

 Log into AdWords and click on the Campaigns tab on the left hand side bar



 Step 2

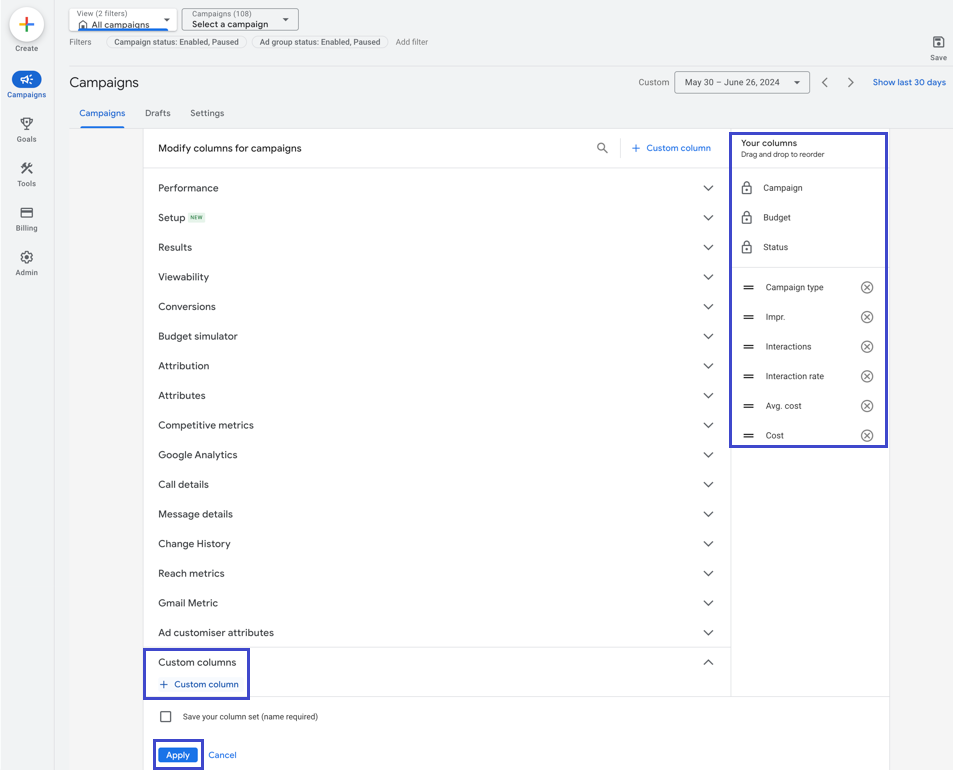

 Click on Columns then click on Modify Columns.



 Step 3

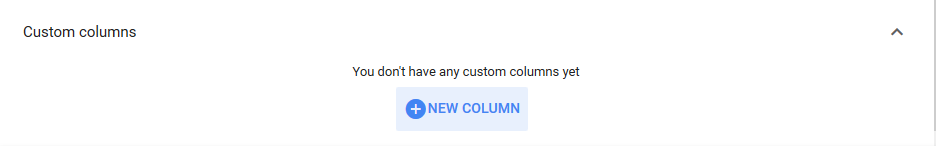

 Click on Custom Columns and click New Column.








Step 4 - Calls Column

 Label your Column, add the conversion metric







Step 5

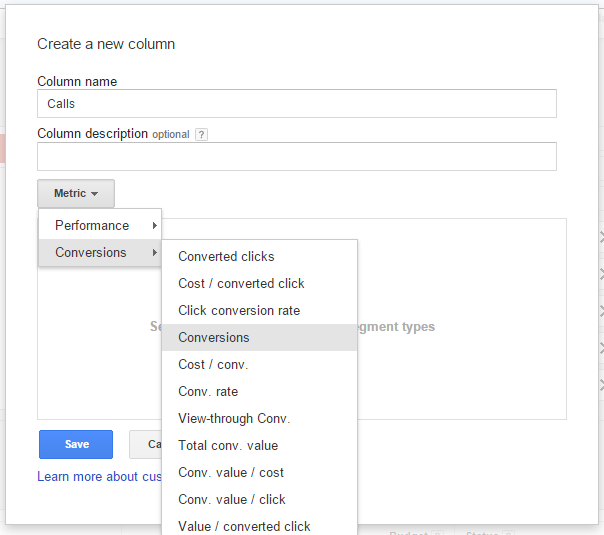

 In the pop-up window that opens, name the column Calls and in the Metric drop down list select Conversions -> Conversions.

 Naming The Column

Step 6

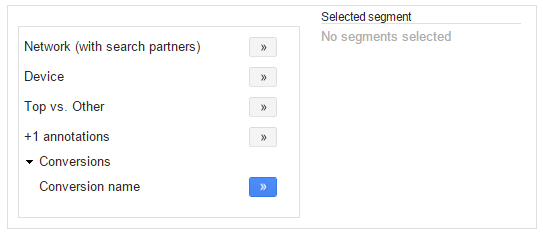

 Click the triangle to the left of Conversions. Then click the button to add Conversion name to the Selected segment area.

 Select Conversion Name

Step 7

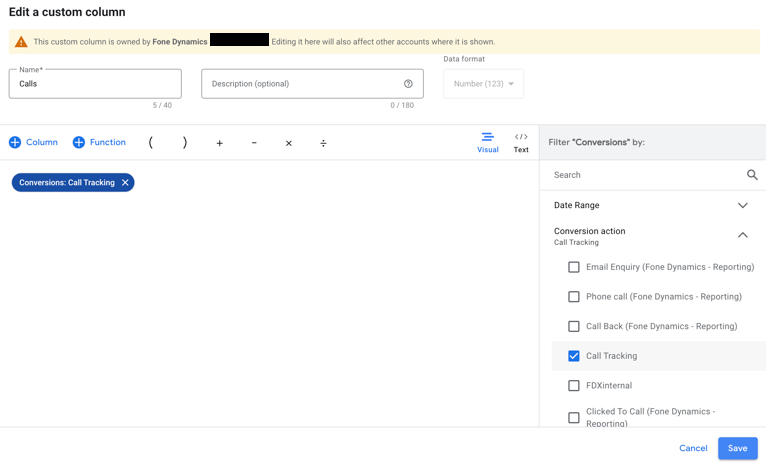

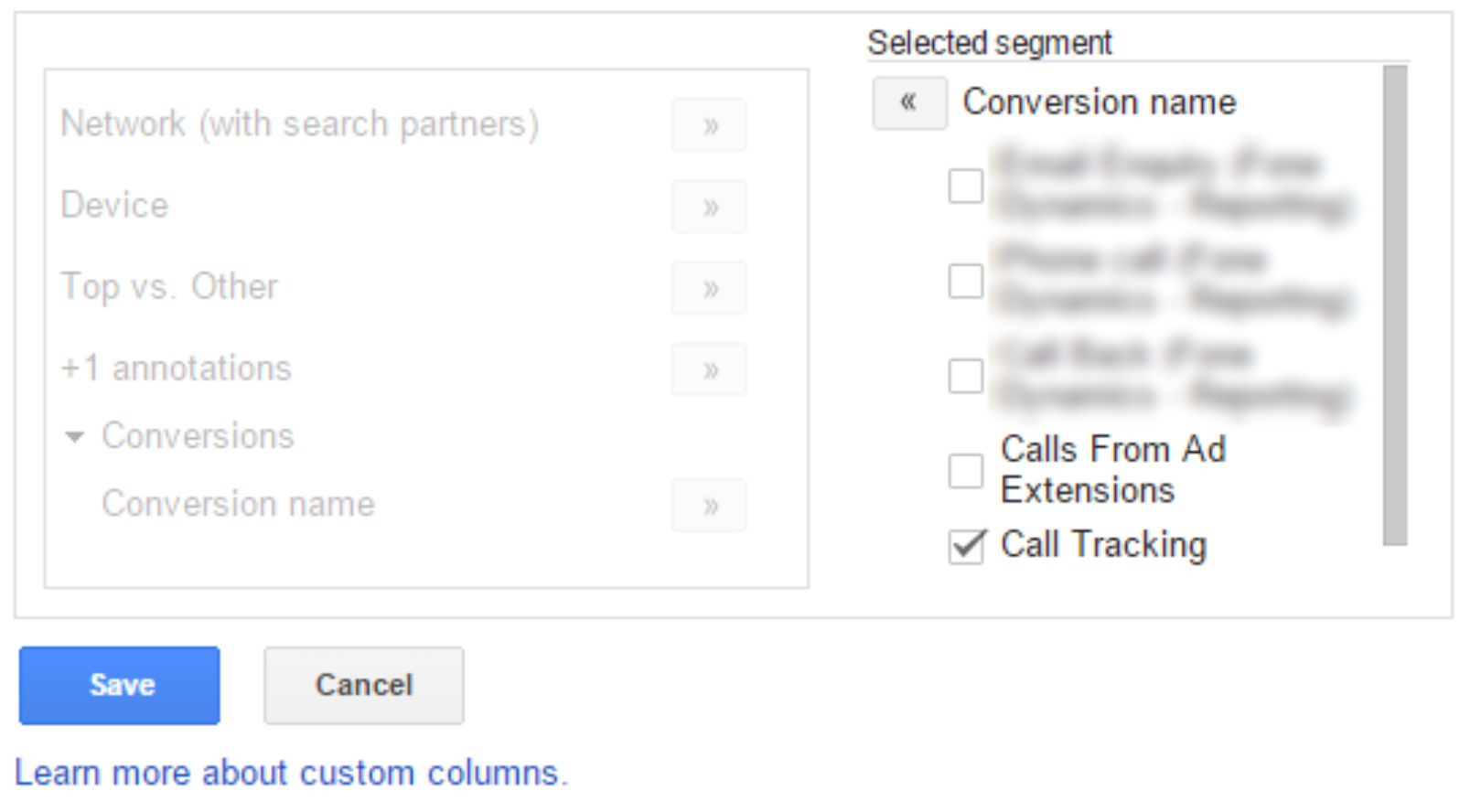

 In the Selected segment area tick the box next to Call Tracking and then click Save.



Select Segment Name

Step 8

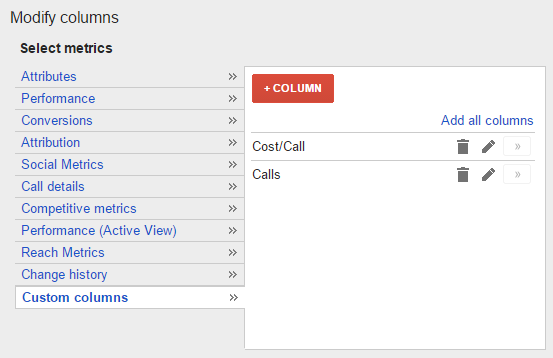

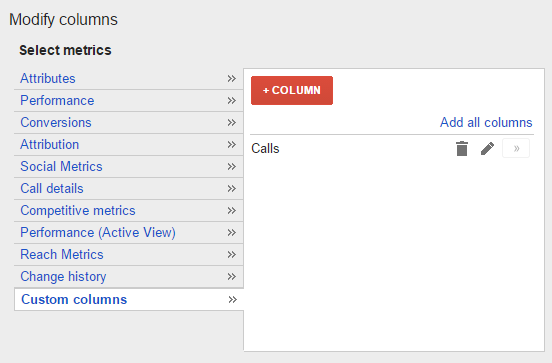

 Click on the + Column button to add a new column.

 Add a New Column

Step 9

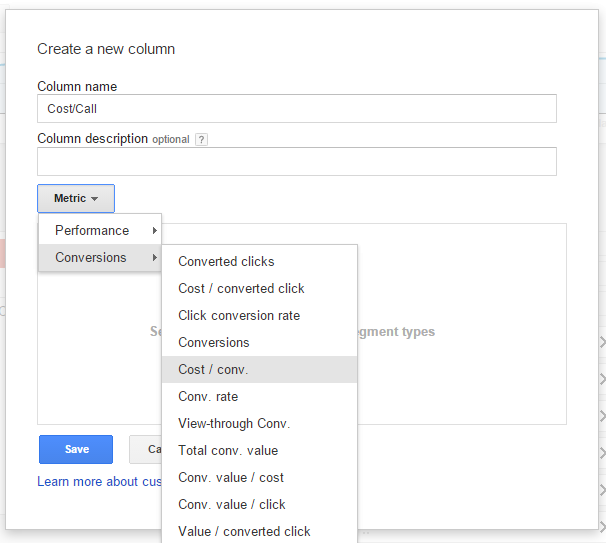

 In the pop-up window that opens, name the column Cost/Call and in the Metric drop down list select Conversions -> Cost / conv.

 Add a New Column

Step 10

 Click the triangle to the left of Conversions. Then click the button to add Conversion name to the Selected segment area.

 Select Conversion Name

Step 11

 In the Selected segment area tick the box next to Call Tracking and then click Save.



Select Segment Name

Step 12

 Add one final column by clicking on the + Column button.

 Add The Final Column

Step 13

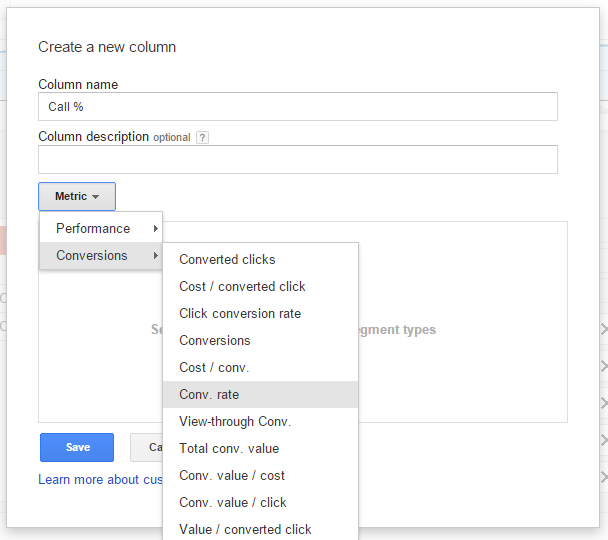

 In the pop-up window that opens, name the column Call % and in the Metric drop down list select Conversions -> Conv. rate

 Conversion Rate

Step 14

 Click the triangle to the left of Conversions. Then click the button to add Conversion name to the Selected segment area.

 Select Conversion Name

Step 15

 In the Selected segment area tick the box next to Call Tracking and then click Save.



Select Segment Name

Step 16

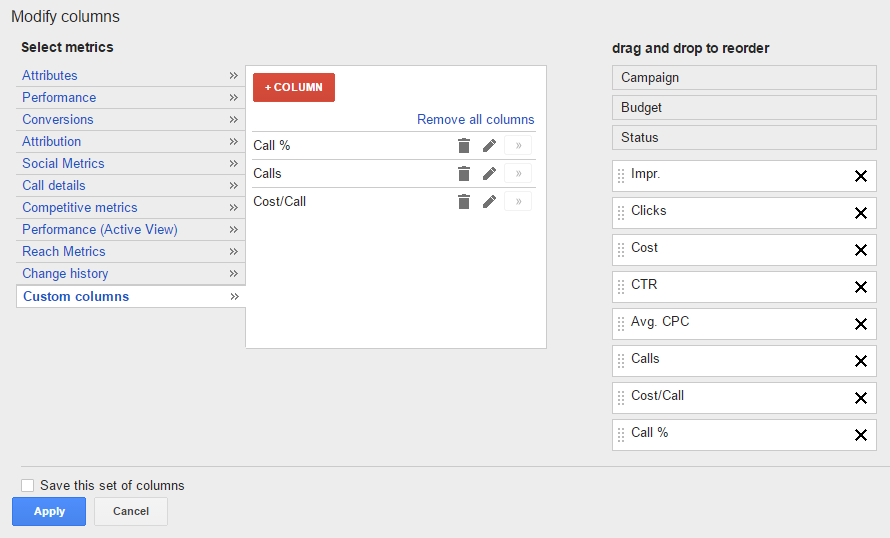

 Finally make sure that all of the new columns have been added to the list on the right to ensure they will be added to your table. If not click on the >> next to the columns that are missing. Click Apply to add these new columns.

 Select Segment Name

Step 17

 You should now see your new columns added to the end of your data table.

 Select Segment Name
